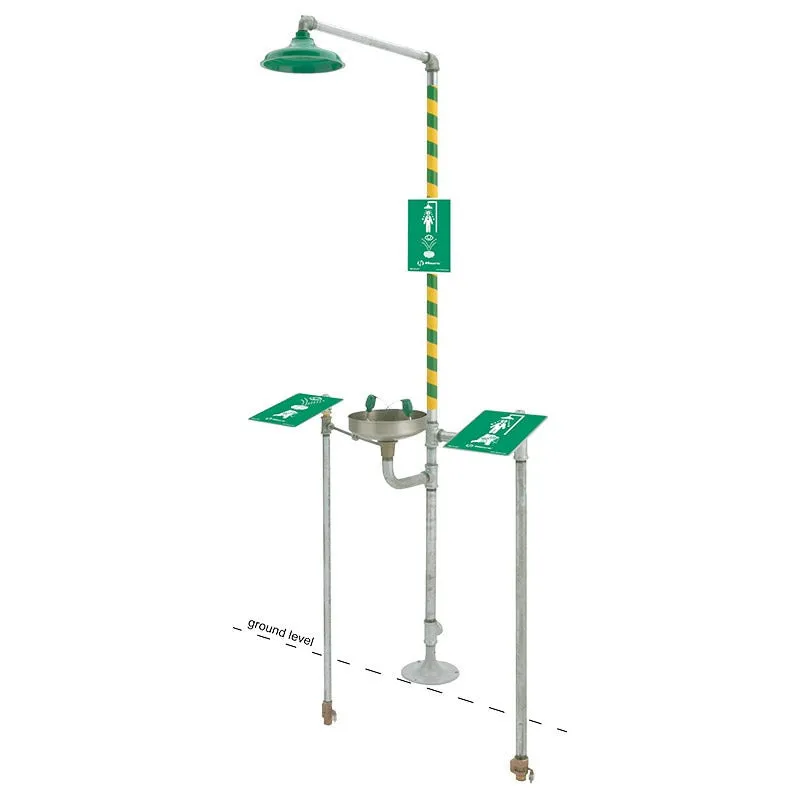

Freeze-Resistant, Combination Drench Shower And Soft-Flo Eyewash Station With Stainless Steel Receptor, Includes MK8A AND MK81A Freeze Protection Valves, Meets ANSI Z358.1-2014 Requirements

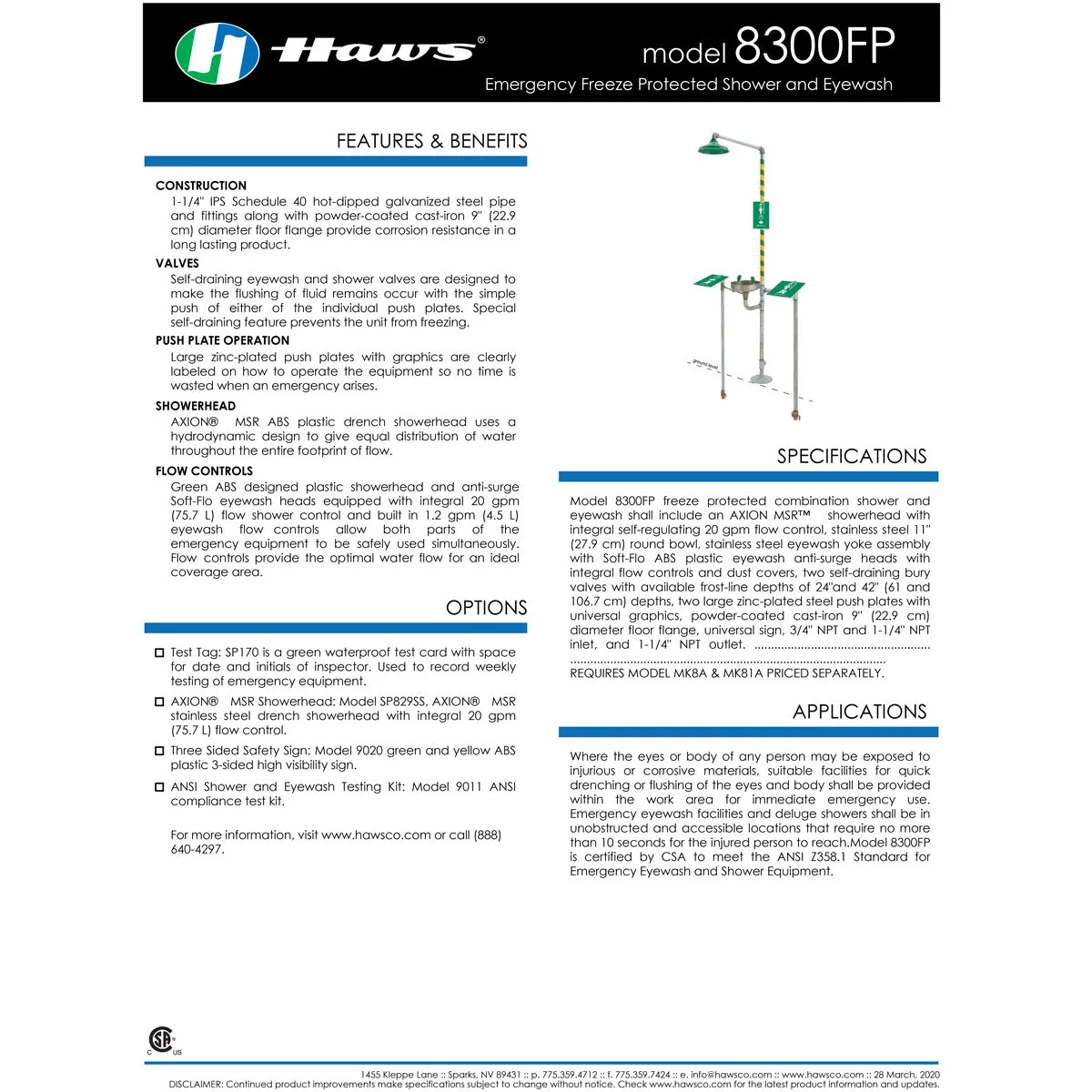

Model 8300FP freeze resistant combination shower and eyewash shall include a green ABS plastic 10-5/8" showerhead with integral self-regulating 20 gpm flow control, stainless steel 11" round bowl, stainless steel eyewash yoke assembly with Soft-Flo ABS plastic eyewash anti-surge heads with integral flow controls and dust covers, two self-draining bury valves with available frost-line depths of 24"and 42" depths, two large zinc-plated steel push plates with universal graphics, powder-coated cast-iron 9" diameter floor flange, universal sign,3/4" IPS and 1-1/4" IPS inlet, and 1-1/4" IPS outlet. Customer must specify bury depth of of 24" or 42".

CONSTRUCTION
1-1/4" IPS Schedule 40 hot-dipped galvanized steel pipe and fittings along with powder-coated cast-iron 9" (22.9 cm) diameter floor flange provide corrosion resistance in a long lasting product.

VALVES
Self-draining eyewash and shower valves are designed to make the flushing of fluid remains occur with the simple push of either of the individual push plates. Special self-draining feature prevents the unit from freezing.

PUSH PLATE OPERATION
Large zinc-plated push plates with graphics are clearly labeled on how to operate the equipment so no time is wasted when an emergency arises.

SHOWERHEAD
AXION® MSR ABS plastic drench showerhead uses a hydrodynamic design to give equal distribution of water throughout the entire footprint of flow.

FLOW CONTROLS
Green ABS designed plastic showerhead and anti-surge Soft-Flo eyewash heads equipped with integral 20 gpm (75.7 L) flow shower control and built in 1.2 gpm (4.5 L) eyewash flow controls allow both parts of the emergency equipment to be safely used simultaneously. Flow controls provide the optimal water flow for an ideal coverage area.
